Sistema de ventana refractaria serie E90

Estado de Disponibilidad:
La serie DIMEX Casement de 65 mm, 72 mm, 82 mm y 90 mm se puede procesar en sistemas de ventanas refractarias según sus requisitos.Agregamos y construimos una gran cantidad de materiales ignífugos sobre la base de ventanas ordinarias, de modo que la integridad del fuego de toda la ventana pueda alcanzar 1 hora (sin humo, sin fuego, sin fugas de aire).
  • Certificación ISO9001, CE, IFT, SKZ, SGS.
  • Fórmula alemana de alta resistencia a los rayos UV.
  • 8000 horas xenón probado.
  • Sistema Uf 1,4 W/m2.K.
  • Espesor de pared 2,50 mm.
  • En Blanco Estándar o Varios Colores.
  • Serie E90
  • UPVC Refractory Windows-E90

DIMEX E90 passive window system is certified by the Passive House Institute(PHI) of Germany and is certified to be used in “phB cold regions”. DIMEX E90 was designed to be warm in winter and cool in summer, with low energy consumption windows based on the German high energy standards.This is a system window solution for efficiency, building appearance and good comfort. While "passive design" applies the natural principles of sunlight, wind, temperature and humidity in nature, does not rely on conventional energy consumption as much as possible, and improves and creates the living environment with architectural methods of planning, design and environmental configuration. This series is a German 7-chamber 3 -seal structure with transverse chambers and stiffeners designed to prevent sinking of the inner chamber.

E90 Passive Window Systems Features

1. Excellent air tightness and thermal insulation performance;

Uf 0.90~1.10 W/㎡·K (including steel reinforcements).

Uf 0.90~1.10 W/㎡·K (including steel reinforcements).

No fire or smoke through the closed window for an hour.

Air tightness Grade 8 [ q1 ≤0.5m3/(m·h);  q2 ≤1.5m3/(㎡·h) ].

Water tightness Grade 6 (∆P ≥ 700).

Wind pressure resistance above Grade 8 (P3 ≥ 4.5 KPa).

Sound insulation Grade 5 (Rw + Ctr ≥ 400dB; Rw + C ≥ 400dB).

Heat preservation Grade10 (K< 1.1 W/㎡·K).

2. Advanced "hidden hinge" can be assembled;

3. Fire and flame retardant function;

4. Screw socket transom(mullion).

5. Available for 40 ~60mm glass configuration.

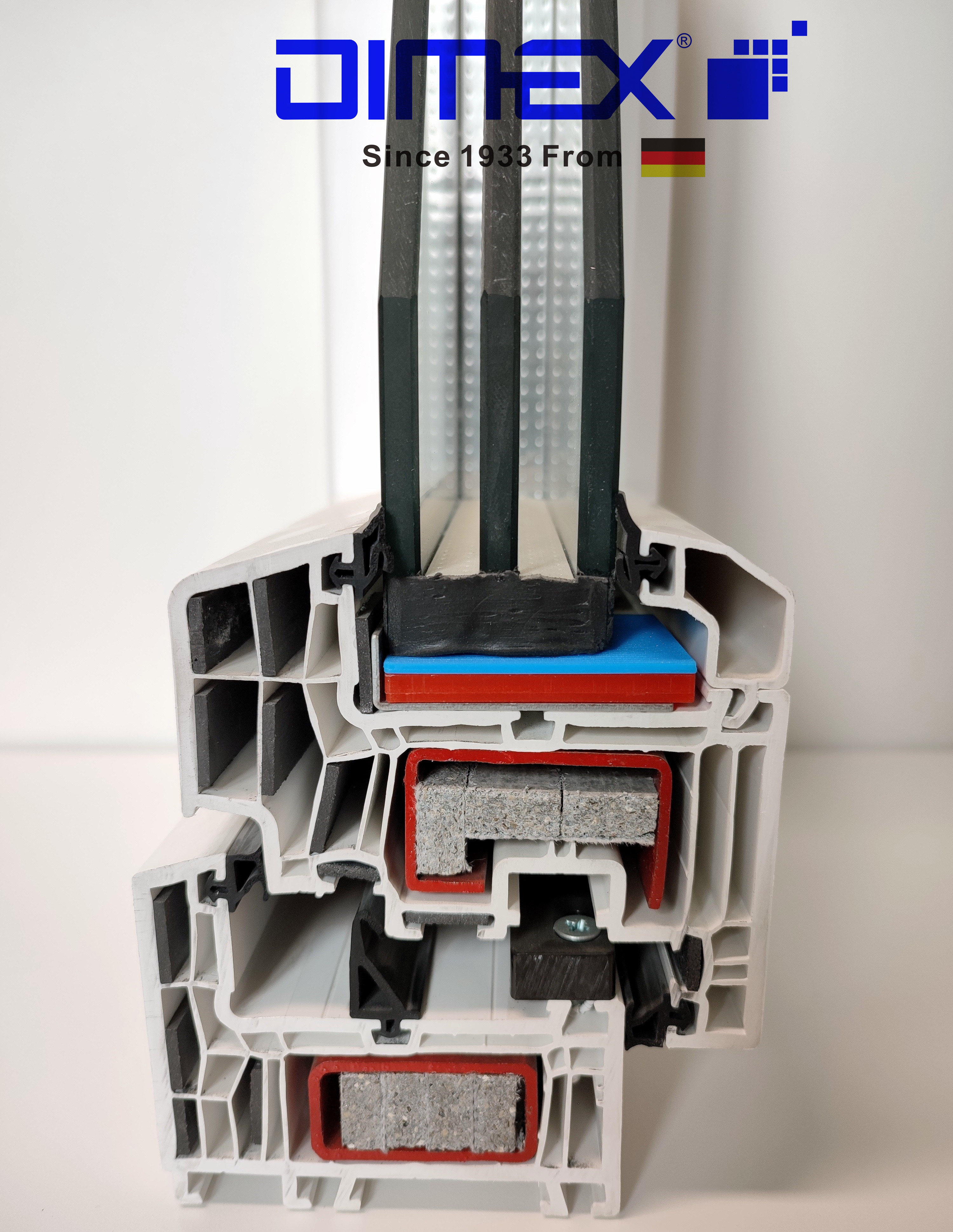

System Structure of E90

 System depth: 90mm – 7 Chambers

1. Maximum thickness of glass 60mm;

2. V-shape designing for glazing bead easy to be maintained and will not hurt the profile.

3. An O-type gasket is added between the glass and the sash.

4. Transverse internal chambers were added.

5. There are 3 fire proof expansion strip chambers in opening sash to ensure the quality of fire-proof Windows.

6. "Hidden hardware" slot.

7. Co-extrusion HPEV ethylene gasket makes the joint not shrink, improve sealing, smooth and beautiful.

8. 7 chamber & 3 sealing structure, double - chamber design for the glass mouth.

Color Options

A.  Standard White (High UV Resistance).

B.  Full Color (Homogeneous).

C.  Laminated.
